INITIAL SIZE AND OUTDOOR LED CHECK
The first brief was approximately 3.2 × 1.92 m. P5 LED was suitable for a larger, farther-viewed outdoor façade, while a 3 × 3 LCD video wall was also reviewed as a near-size alternative.
UWYES · PROJECT EVALUATION CASE
HIGH-BRIGHTNESS RESTAURANT DISPLAY FOR BAHRAIN

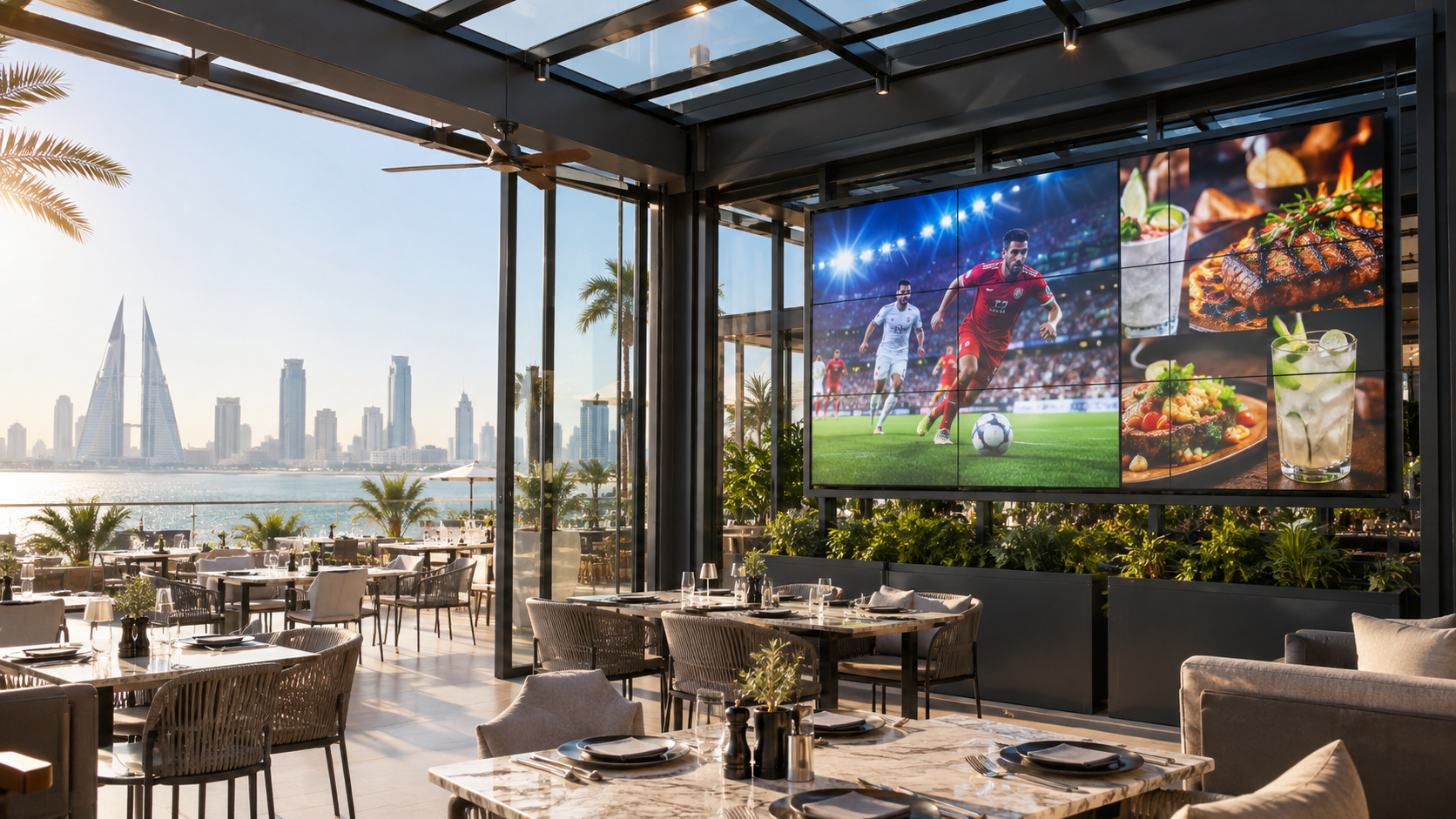

A semi-outdoor restaurant terrace required one large, app-ready display that stays clear in intense daytime light and remains comfortable after dark.
THE CUSTOMER BRIEF
ONE LARGE DISPLAY FOR A 3.0 × 1.8 M OPEN-AIR RESTAURANT AREA
The requested installation is on an existing metal frame in Bahrain. The area has a ceiling and is planned to be enclosed with glass windows and sliding doors, but it receives direct sun and high ambient heat.
The screen needs clear daytime visibility, comfortable night operation, YouTube and other app playback, and a practical route for sports and restaurant content.
WHY THE RECOMMENDATION CHANGED
FINAL 3.0 × 1.8 M SIZE AND CLOSER VIEWING
After the semi-outdoor environment and final size were confirmed, P3.91 LED became the better LED option for close viewing. The tighter pixel pitch gives a cleaner image for diners near the screen.
VIDEO WALL PREFERENCE
The customer prefers a high-brightness 46-inch 3 × 3 LCD video wall. It is the practical choice when the glass enclosure protects the screen and the final heat, ventilation and mounting conditions are approved.
TWO TECHNICAL ROUTES
A close-viewing LED route
- Approx. 3.0 × 1.8 m final screen size is set by the confirmed cabinet layout
- Fine P3.91 pixel pitch is more comfortable than P5 for diners viewing at short distance
- Seamless image, strong daytime visibility and dimming for evening service
- Outdoor-capable cabinet, thermal design and weather protection suit a location that remains exposed
- Android media player or Smart Box can supply YouTube, sports and scheduled content
The customer-preferred route
- Approx. 305 × 172 cm overall display area, close to the requested 300 × 180 cm
- 4K overall layout with 1,500-nit high brightness and anti-glare configuration
- Natural choice for close viewing, YouTube, sports, restaurant visuals and app-based content
- Requires the planned glass enclosure, controlled water exposure, ventilation and a verified metal-frame mounting design
- Panel bezels remain visible, but the configuration offers familiar 16:9 content handling
UWYES RECOMMENDATION
SELECT THE VIDEO WALL ONLY WITH A PROTECTED, VENTILATED GLASS-ENCLOSURE DESIGN
For this exact restaurant brief, the 46-inch 3 × 3 high-brightness video wall is the preferred solution because of the close viewing distance and familiar 16:9 smart-content experience. Before production, UWYES should confirm the actual sunlight angle, ventilation path, metal-frame load, power, service access and the glass-enclosure design.
If the site remains materially open to sun, rain or wind-driven dust, P3.91 high-brightness LED is the more resilient technical route.
FINAL CONFIRMATION CHECKLISTDaylight and heat surveyGlass / rain protection scopeMetal-frame mounting drawingPower and cable routeAndroid Smart Box or media-player requirement
