OUTDOOR COFFEE HUB: FOUR SCREENS, ONE PLATFORM
A smart urban coffee hub combines advertising, public information and touch interaction. The buyer needs genuine outdoor commercial displays, not indoor panels behind extra protective glass.
CUSTOMER PAIN POINTS
- Direct sun, high ambient heat, humidity and dust challenge visibility and long-term reliability during continuous operation.
- The 43-inch touch display must be evaluated for rain, wet fingers and the actual glove type used by customers.
- The customer wants lower repeat-deployment costs without reducing brightness, outdoor protection, thermal performance or component quality.
CUSTOMER REQUIREMENTS

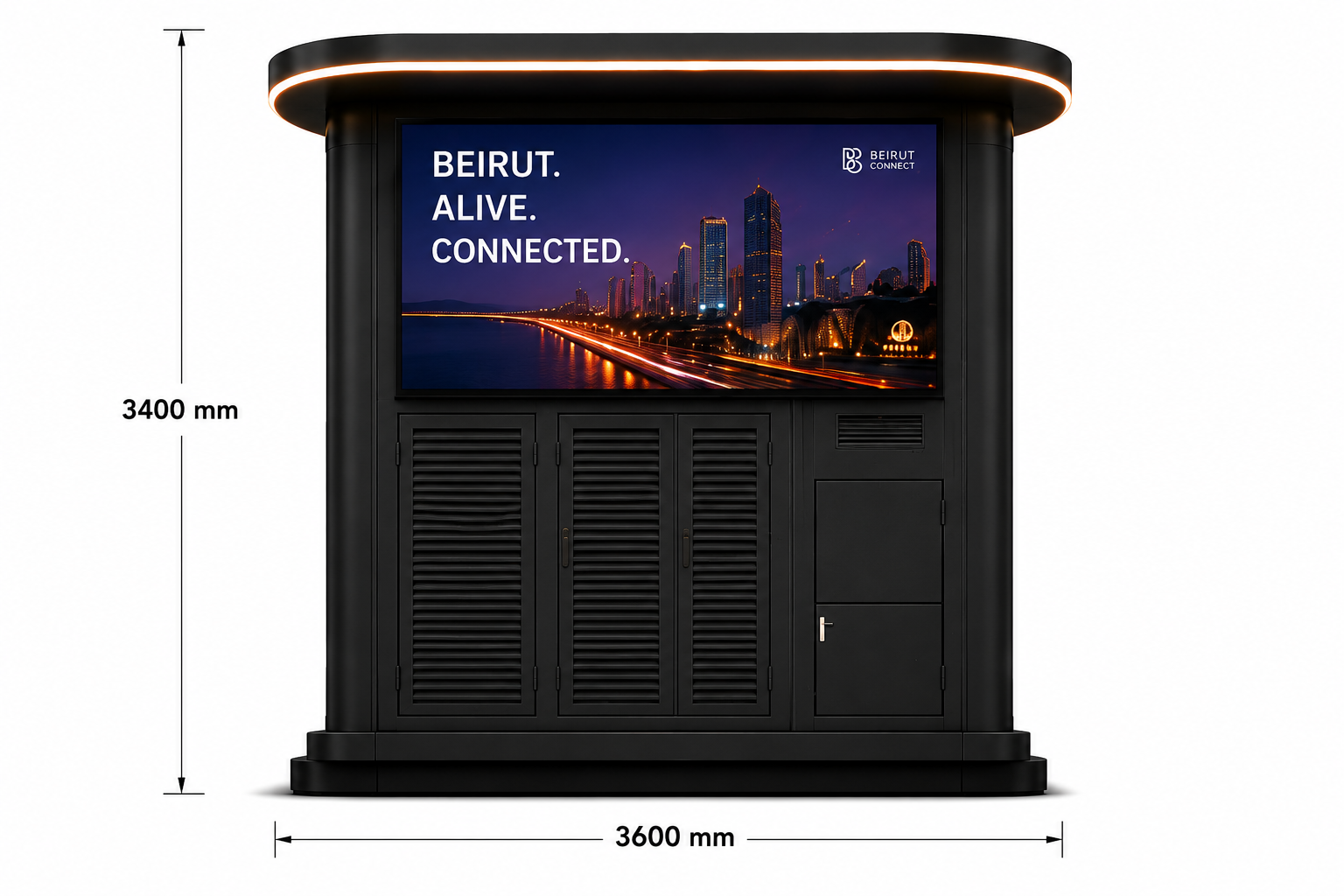

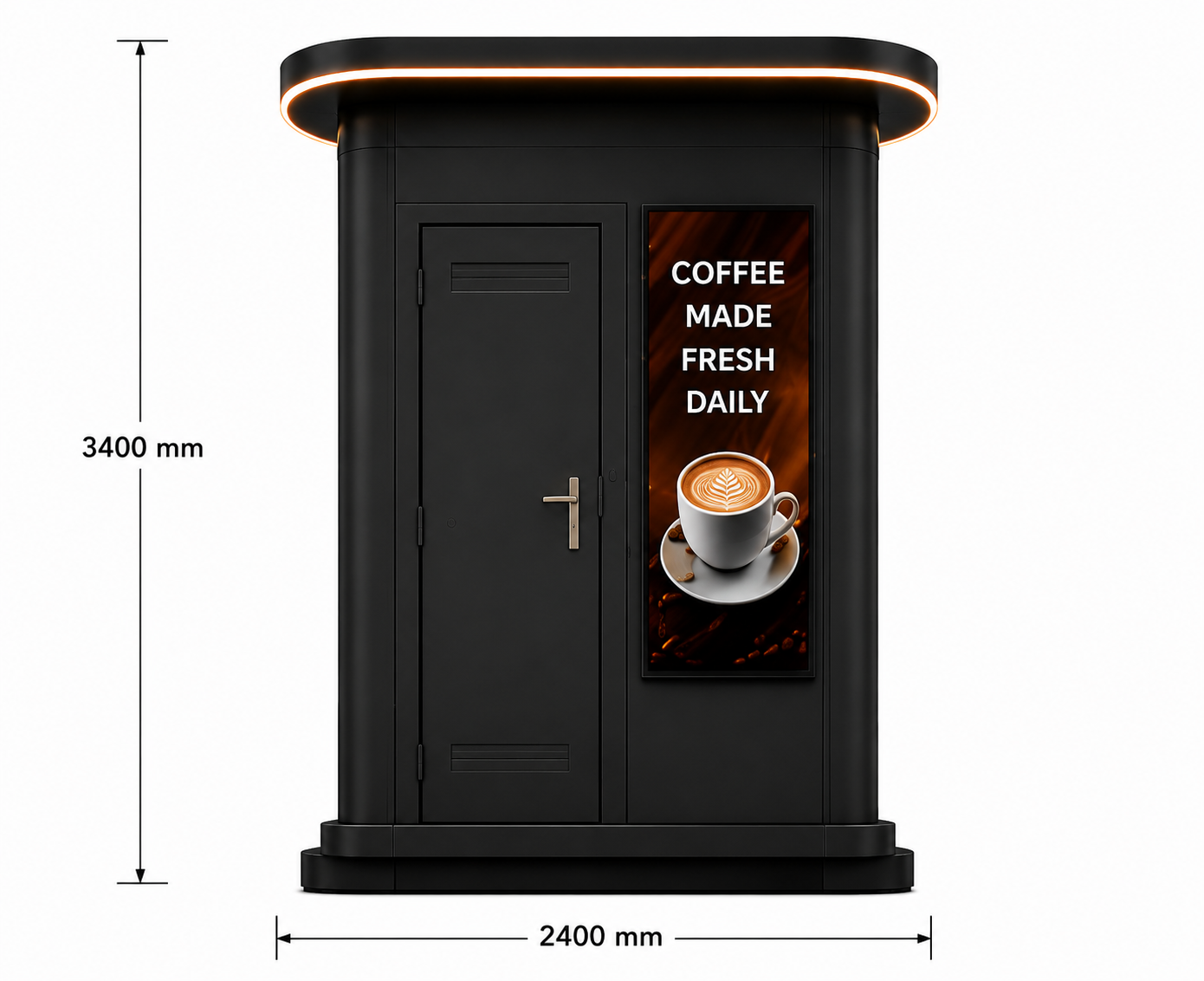

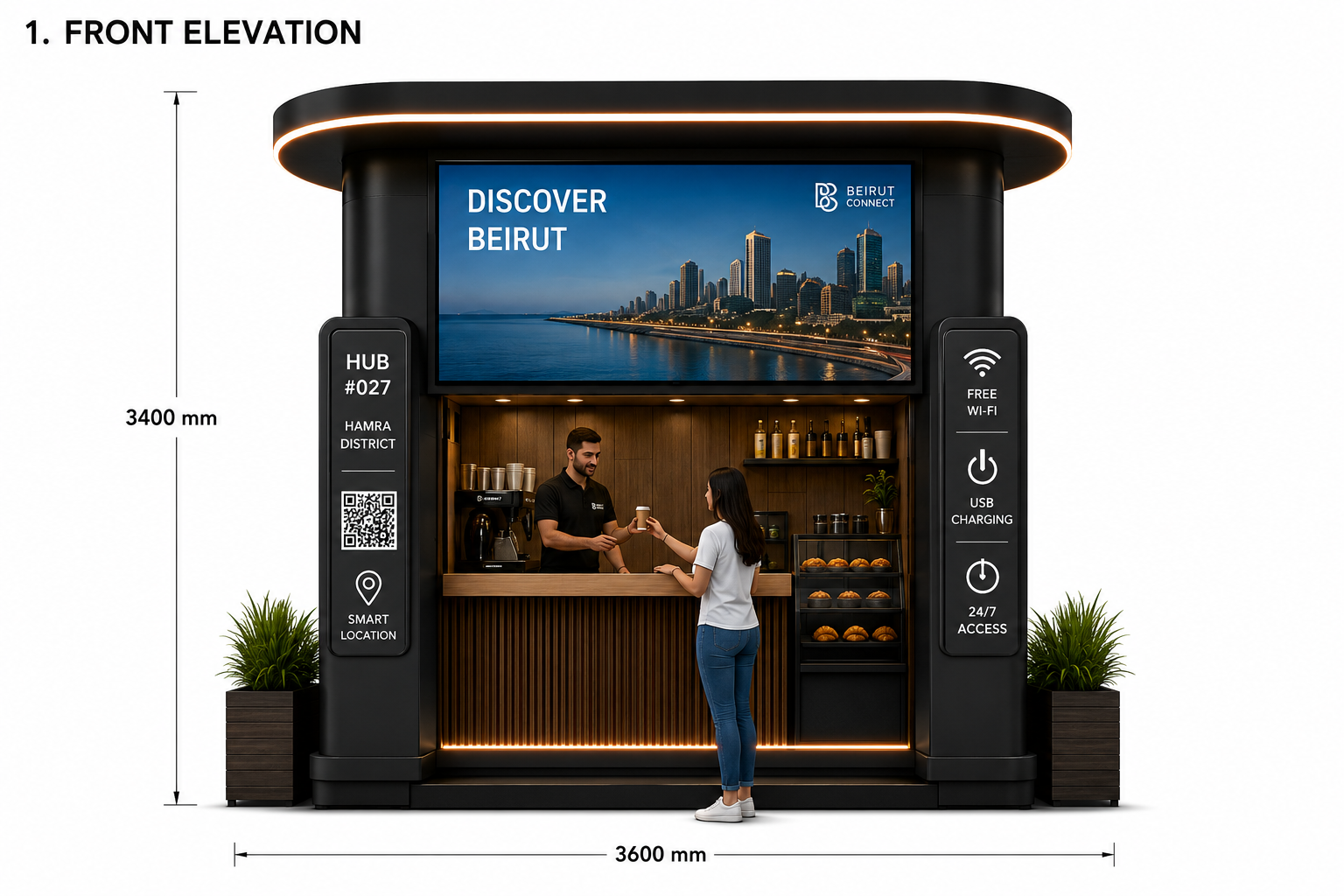

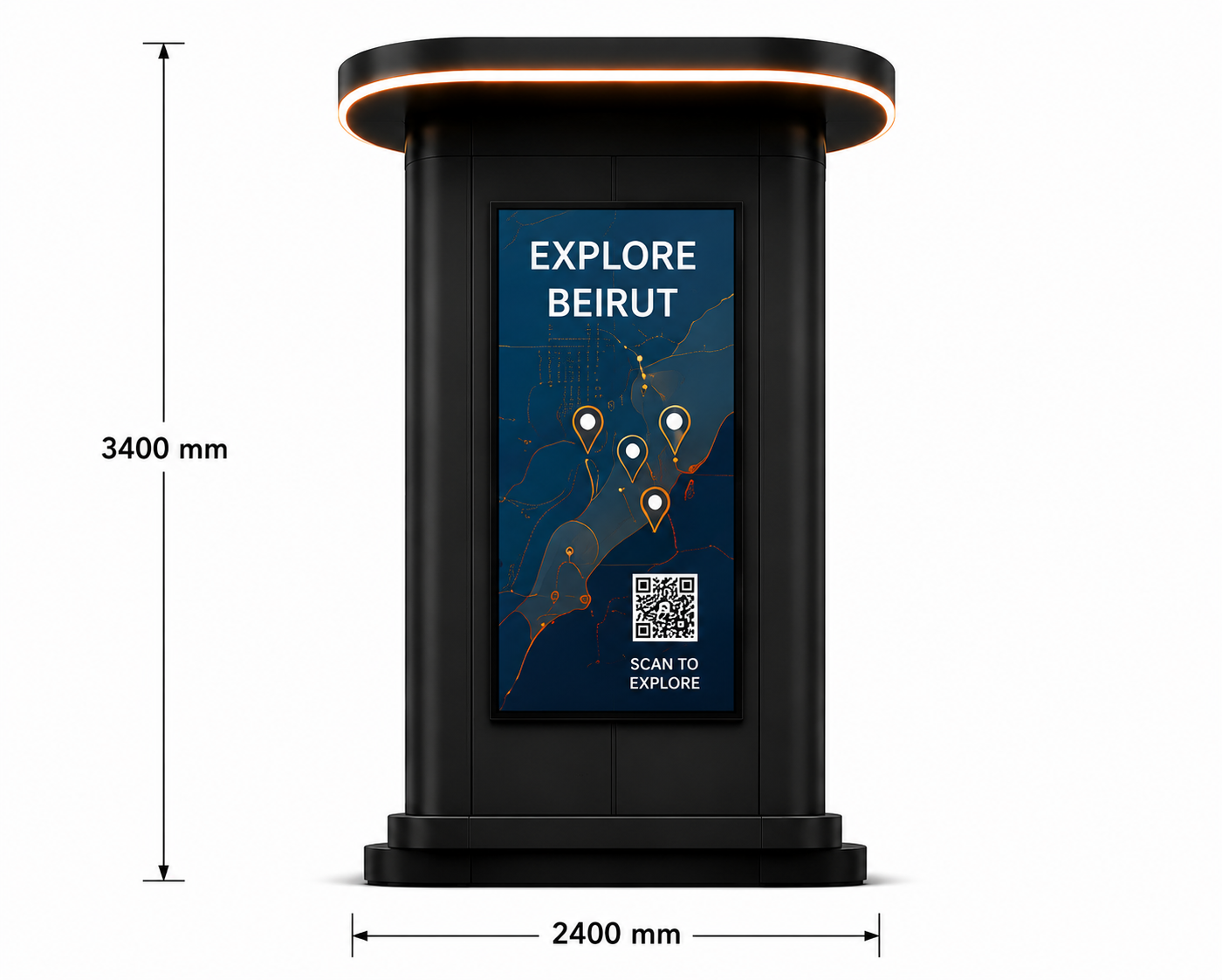

- One set: 32-inch non-touch + 43-inch PCAP + 65-inch non-touch + 75-inch non-touch; orientation and mounting follow the four supplied exterior views.
- IP65 minimum; IP66 preferred if available. At least 2,500 nits, automatic dimming, anti-glare/UV front protection, thermal management, 24/7 operation and remote CMS.
UWYES RECOMMENDATION
- The revised set proposes 32-inch at 2,500 nits and 43-inch touch, 65-inch and 75-inch at 3,000 nits, with automatic brightness adjustment. Lock the exact BOE panel models and finished-unit datasheets before production.
- UWYES proposed coastal anti-corrosion powder coating for the enclosure. Confirm the coating specification and applicable salt-spray test evidence for the final model.
- Active air cooling uses temperature sensors to start internal fans at the set threshold. Coordinate fan airflow with pavilion ventilation, drainage and rear service clearance.
- The revised proposal specifies 20-point outdoor PCAP with wet/rain false-touch rejection and glove support. Test the actual gloves and application on a sample; optical bonding is an optional configuration.
- CMS stays optional, with external players and third-party content systems supported. The reply offers a project warranty extension from 12 to 24 months, subject to the final agreement.
32 / 43 / 65 / 75-inch outdoor displays · PCAP touch option · 2,500 / 3,000-nit configurations
EXPECTED OUTCOMES & VALIDATION
- Before model approval: confirm panel maker/model, brightness options, operating temperature, IP report, lifetime and warranty; verify sunlight, thermal and touch performance on samples.
PROJECT PLANNING & TECHNICAL DETAILS
COMPLETE-SET QUOTATION & SCALE-UP
Quote one complete four-screen set in EXW and FOB terms after model approval. State MOQ, lead time, OEM/ODM scope and the repeat-deployment configuration.
HEAT, AIRFLOW AND SERVICE
Confirm which position takes each screen size, then freeze cut-outs, depth, weight, power, ventilation and maintenance clearances. Panel temperature capability must not be confused with the finished-display operating range.
MODEL DOCUMENTATION & MECHANICAL FIT
Model-specific IP65 and IK10 documentation was supplied for review. Match the selected enclosure and front-glass assembly to the listed report coverage; obtain separate evidence for any unlisted configuration.
Send your target market, quantity, installation conditions and assembly plan. We will review configuration, samples, documentation and production responsibilities before quotation.
